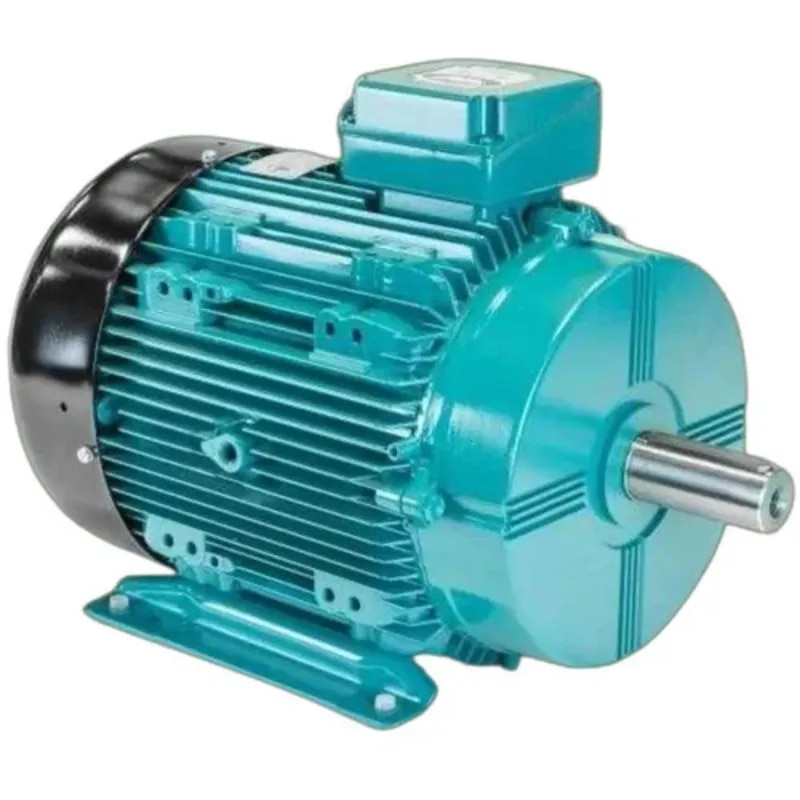

B3 B5 0.37 KW Crompton Greaves Flameproof Motor

Description

Power 0.37 KW Horsepower 0.5 HP Speed 3000 rpm No. of Poles 2 Ambient Temperature 45 Mounting Type B3 B5 Voltage 415 Phase 3 Phase Brand Crompton Frequency 50 Hz Frame Size 80 To 400 Standard IE2 IP Rating IP55 Usage/Application Machinery The Indian Electric Company are the Authorised Dealer Of CG Power (Crompton Greaves) Flame Proof Motors Having Range From 0.37 KW to 400 KW & 0.5 HP to 535 HP. This Motors are 3 Phase with 415 Volt & Frequency of 50 Hz. Crompton Flame Proof Motors Are Available In 3000 RPM, 1500 RPM, 1000 RPM, 750 RPM With Respect to and 2 Pole, 4 Pole, 6 Pole & 8 Pole With Cast Iron Body. This Motors Are Compatible With Gas Group IIA & IIB. Available Frame Sizes Are From 80 to 400 Frame. Mounting Options Are B3 (Foot Mounting) B5 (Flange Mounting), B35 (Foot cum Flange Mounting) Available With Terminal Box Position At RHS Or Top Side. Crompton Flame Proof motors Are Available In Insulation Class F & Temperature Rise Limited To Class B with IP 55 Degree of Protection.
