Name: AEC H10 0.25HP 4POLE FOOT GEAR BOX
Brand: AEC
Price: 6490 INR
Availability: InStock

AEC H10 0.25HP 4POLE FOOT GEAR BOX

INR 6490 INR 12980

Phone Number

08048034299

Please keep 0 before dialling the number.

Email Address sales@perfectengineeringsolutions.com

Mon-Thu: 10 AM - 2 PM • Fri: 3 PM - 7AM

Other Website Visit our other website

Address 4/1, B, Lakshmana Gounder Street, Laxmi Nagar, Sanganoor, Coimbatore, Tamil Nadu 641027

Coimbatore, India, 641027

Description

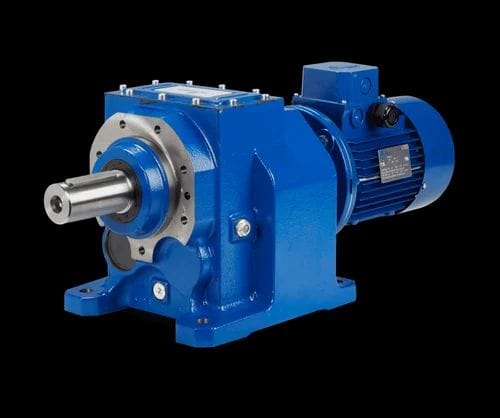

The AEC H10 Gearbox with a 0.25hp 4-pole motor is a compact industrial power transmission unit designed for low-power, high-torque applications. Key Technical Specifications Gear Unit (H10): This is the frame size. It is a Helical Gearbox known for high efficiency and quiet operation. It has a maximum torque capacity of 90 Nm. Motor Power (0.25hp / 0.18kW): This is a low-power motor, ideal for small conveyors, mixers, or stirrers. 4-Pole Motor: A 4-pole motor running on a 50Hz supply has a synchronous speed of 1500 RPM, with an actual running speed of approximately 1400–1450 RPM. Torque (43 Nm): Based on your chart, at 0.25hp, this specific configuration provides 43 Nm of output force, which is well within the 90 Nm limit of the H10 housing. Foot Mounted: The gearbox features “feet” (mounting brackets) at the base with bolt holes, allowing it to be securely fixed to a flat floor or machine bed.
