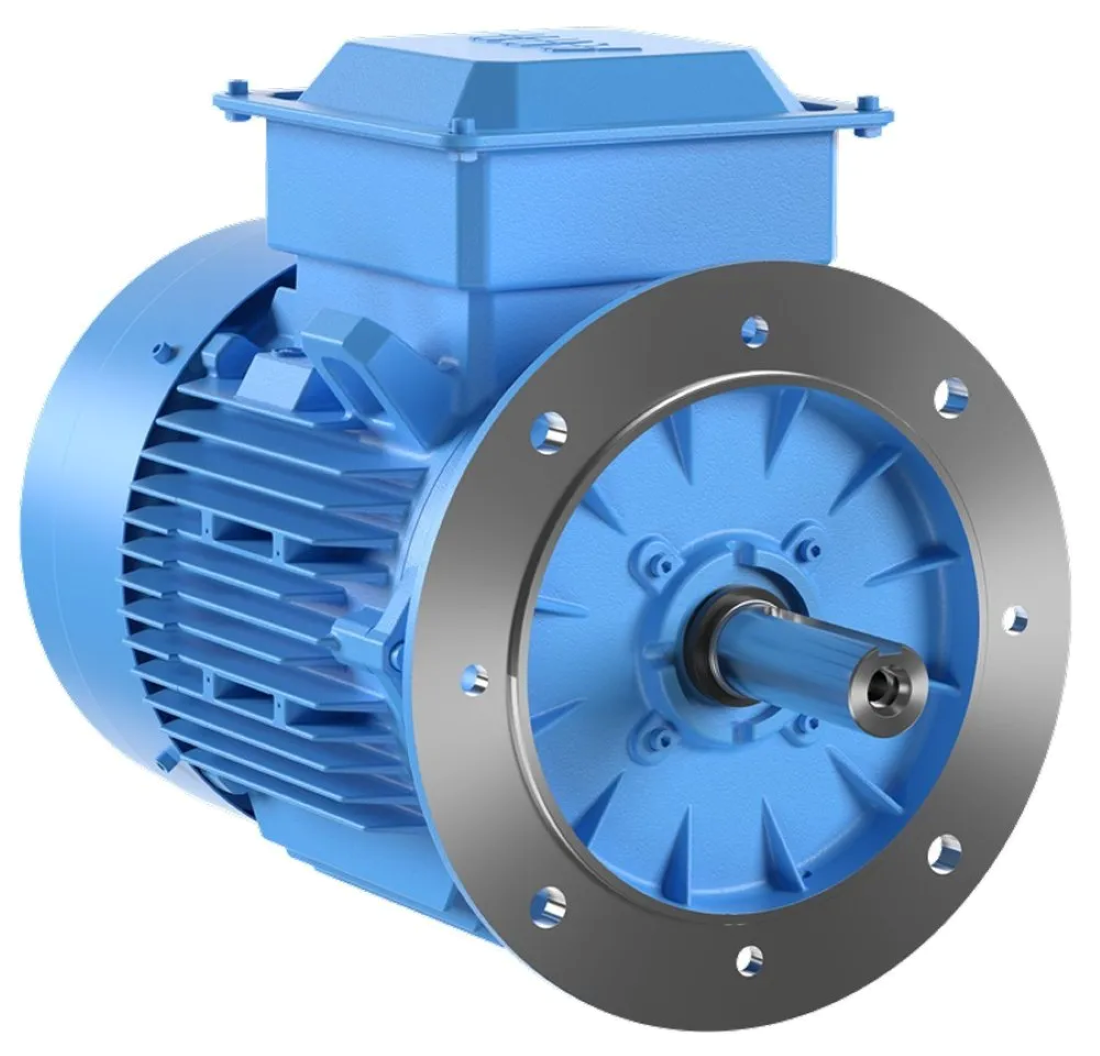

An ABB 10HP (7.5 kW) 4-pole flange-mounted motor is a robust, high-efficiency three-phase AC induction motor designed for industrial applications requiring direct mounting to machinery (pumps, gearboxes, fans). The most common model is the M2BAX132MLA4 (or M2BAX132MA4), which features a flange (B5 or B35) for secure, compact connection and IP55 protection against dust and water. Key Features and Specifications: Power: 10 HP (7.5 kW) Poles/Speed: 4 Poles (approx. 1440-1500 RPM at 50 Hz) Mounting: Flange Mounted (B5) or Foot-cum-Flange (B35) Efficiency: IE2 (High Efficiency) or IE3 (Premium Efficiency) Frame Size: 132M or 132L Voltage/Frequency: 415V, 50Hz (3-Phase) Protection/Cooling: IP55 (Totally Enclosed Fan Cooled - TEFC) Material: Cast Iron body with copper windings
